Unpacking and Installing the Machine

This section describes how to unpack and install the machine.

Injury may result.

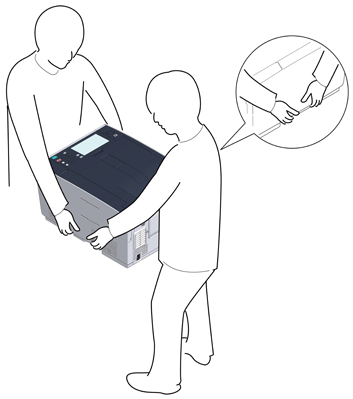

Lift this machine by 2 persons, because it weighs approximately 24 kg.

Note

  • Use extra care when handling the image drum (the green cylinder), because it is fragile.

  • Do not expose the image drum to direct sunlight or strong light (approximately 1,500 lux or more). Even under room lighting, do not leave the image drum for 5 minutes or more.

  • Packaging and cushioning materials are required for transporting the machine. Do not dispose of it, and keep it for future use.

  1. Remove the machine from the box, and then remove accessories, cushioning materials and the plastic bag from the machine.

  2. Lift the machine, and then place it where it is to be installed.

  3. Remove the protection tapes, protective sheet, and desiccant packs.

  4. Press the button (A) and open the output tray (a) completely.

  5. Pinch the tip of blue lever of the toner cartridge and turn forward until the tip aligns on the lug of the cartridge.

    Turn the levers of all 4 toner cartridges.

    Note

    If you close the output tray without turning the blue lever, it may cause a malfunction. Be sure to turn the blue lever until its top aligns on the lug in the back of the toner cartridge.

  6. Pull the locking levers on the fuser unit toward you to unlock.

  7. Hold the fuser unit handle and lift the fuser unit out of the machine.

    Note

    While removing the fuser unit, be careful not to hit it to the LED head.

  8. Push the blue lever on the fuser unit and remove the orange safety stopper and film.

  9. Hold the fuser unit handle and aligning the fuser unit to the grooves behind the toner cartridges, place the fuser unit into the machine.

    Note

    While setting the fuser unit, be careful not to hit it to the LED head.

  10. Push the levers on the fuser unit to lock.

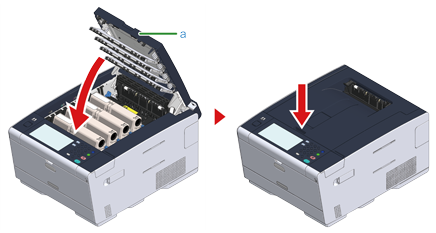

  11. Close the output tray (a) slowly and push the center of the output tray for confirmation.

    Note

    When the error message that the output tray is open does not disappear, make sure that the output tray is closed securely.
