Setting Up

Installation Environment

Install the machine in the following environment.

Ambient temperature: 10℃ to 32℃

Ambient humidity: 20% to 80% RH (relative humidity)

Maximum wet bulb temperature: 25℃

Use care to prevent condensation. It may cause a malfunction.
If installing your machine where the ambient humidity is 30% RH or below, use a humidifier or antistatic mat.
Depending on the installation environment, the operation noise may be louder. If the noise bothers you, we suggest you to install the machine in the place away from you or in another room.


Do not install the machine in a location subject to high temperatures or in a location near fire. Do not install the machine in a location where chemical reactions may occur (such as a laboratory). Do not install the machine near alcohol, thinners, or other flammable solvents. Do not install the machine in a location within the reach of small children. Do not install the machine in an unstable location (such as on an unsteady stand or slanted location). Do not install the machine in a location with high level of humidity or dust, or in a location where the machine is exposed to direct sunlight. Do not install the machine in an environment where it is exposed to salty air or corrosive gas. Do not install the machine in a location where it is exposed to a high level of vibration. Do not install the machine in a location where its vent hole is blocked.

Do not install the machine in a location subject to high temperatures or in a location near fire.
Do not install the machine in a location where chemical reactions may occur (such as a laboratory).
Do not install the machine near alcohol, thinners, or other flammable solvents.
Do not install the machine in a location within the reach of small children.
Do not install the machine in an unstable location (such as on an unsteady stand or slanted location).
Do not install the machine in a location with high level of humidity or dust, or in a location where the machine is exposed to direct sunlight.
Do not install the machine in an environment where it is exposed to salty air or corrosive gas.
Do not install the machine in a location where it is exposed to a high level of vibration.
Do not install the machine in a location where its vent hole is blocked.


Do not install this machine directly on a thick rug or carpet. Do not install this machine in a closed room or other locations with bad circulation and ventilation. If you use this machine in a small room continuously for an extended period of time, make sure to ventilate the room. Install this machine away from a source that emits strong magnetic fields or noise. Install this machine away from a monitor or television. Moving the machine requires that two people stand in front and back of the machine respectively, hold the handles at the bottom of the machine, and move it.

Do not install this machine directly on a thick rug or carpet.
Do not install this machine in a closed room or other locations with bad circulation and ventilation.
If you use this machine in a small room continuously for an extended period of time, make sure to ventilate the room.
Install this machine away from a source that emits strong magnetic fields or noise.
Install this machine away from a monitor or television.
Moving the machine requires that two people stand in front and back of the machine respectively, hold the handles at the bottom of the machine, and move it.

Install the machine on a flat surface that is wide enough to accommodate the legs of the machine.

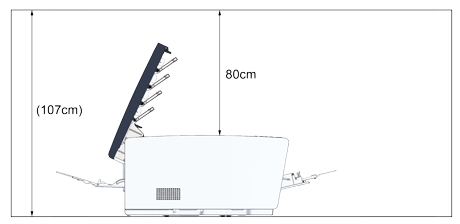

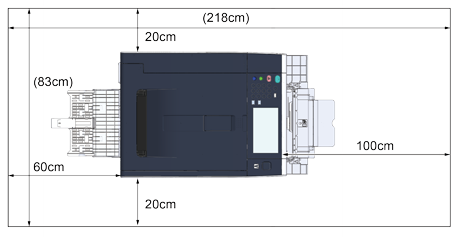

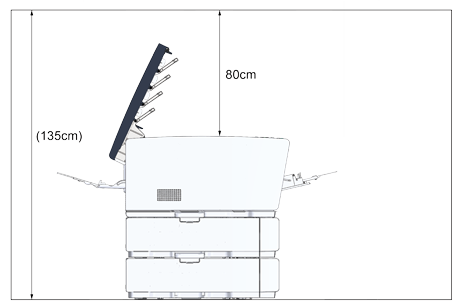

Allow for enough room around the machine as shown in the following figures.
