In [Easy Setup], you can change the settings of date/time, network by using [Device Settings] on the touch panel.
-
Press [Device Settings] on the touch panel.
-
Press [Easy Setup].
-
Enter the administrator name and password and press [OK].
The factory default administrator name and password are "admin" and "999999" respectively.
-

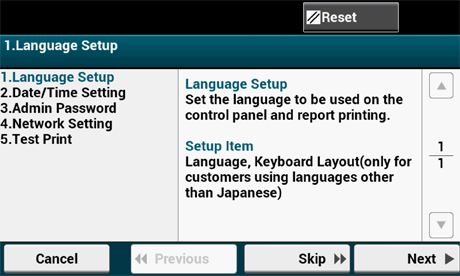

Follow the on screen instructions.
Language Setting
|
Item |
Description |
|---|---|
|
Language Setting |
Sets the language that is displayed on the operator panel. |
Date/Time Setting
|
Item |
Description |
|
|---|---|---|
|
Time Zone |
Sets the GMT time zone. |
|
|
Daylight Saving |
Sets daylight saving to ON or OFF. |
|
|
Server |
SNTP Server (Primary) |
Sets the SNTP server to use for setting the current date and time. You can enter up to 64 characters. |
|
SNTP Server (Secondary) |
||
|
Manual |
Date |
Sets the current date and time manually. |
|
Time |
||
Admin Password
|
Item |
Description |
|---|---|
|
New Password Enter Password (Verify) |
Changes the administrator password. 6 to 12 characters can be used. |
Network Setting
|
Item |
Description |
|||
|---|---|---|---|---|
|
Enabling Default Gateway (If wireless LAN module fitted) |
Sets which default gateway to be enabled between wired LAN or wireless LAN. |
|||
|
Wireless Setting (If wireless LAN module fitted) |
WPS |
WPS-PBC |
WPS-PBC is executed. |
|
|
WPS-PIN |
WPS-PIN is executed. |
|||
|
Search |
A list of access point name found in the search |
Displays a list of wireless LAN access points' names that are found in a search. |
||
|
Manual Setup |
SSID |
Enter an SSID. |
||
|
Security |
Selects the security of the wireless LAN function. "WPA-EAP" and "WPA2-EAP" can be set only in Web. |
|||
|
WEP Key |
Enter WEP Key. Displays if [WEP] is selected for [Security]. |
|||
|
WPA Encryption Type |
Select a WPA/WPA2-PSK or WPA2-PSK encryption type. Displays if [WPA/WPA2-PSK] or [WPA2-PSK] is selected for [Security]. |
|||
|
WPA Pre-shared Key |
Enter the Pre-shared Key. Displays if [WPA/WPA2-PSK] or [WPA2-PSK] is selected for [Security]. |
|||
|
Reconnect |
Wireless reconnection is executed. |
|||
|
Obtaining IP address |
Sets to obtain the IP address automatically or manually. |
|||
|
IP Address |
Sets the IP address. You can enter up to 15 characters. |
|||
|
Subnet Mask |
Sets the subnet mask. You can enter up to 15 characters. |
|||
|
Default Gateway |
Sets the gateway address. You can enter up to 15 characters. |
|||
|
DNS Server (Primary) |
Sets the IP address for a Primary DNS server. You can enter up to 15 characters. |
|||
|
DNS Server (Secondary) |
Sets the IP address for a Secondary DNS server. You can enter up to 15 characters. |
|||
|
WINS Server (Primary) |
Sets the name or the IP address for the WINS server. You can enter up to 15 characters. |
|||
|
WINS Server (Secondary) |
Sets the name or the IP address for the WINS server. You can enter up to 15 characters. |
|||
Test Print
|
Item |
Description |
|---|---|
|
Test Print |
Performing test printing allows you to check if the consumables and paper are properly set. |
