Scanning a Document with a Colored Background Clearly (Background Removal)

To adjust a level of the document background removal, you can select Auto or OFF, or adjust in six levels.

If you select [Auto], the background is automatically removed in a level that suits the document.

Note

  • In the following cases, background color may not be correctly detected and not be eliminated successfully.

    • When a custom-size document is loaded

    • When a document with the front edge folded is loaded

    • When a document missing the front edge or an oblique document is loaded

    • When a document having a hole near the front edge is loaded

    • When a document is placed without aligning it with the guide on the document glass

  • If a greater value of the background removal is set, fine lines, texts or light colors may not be reproduced depending on the document.

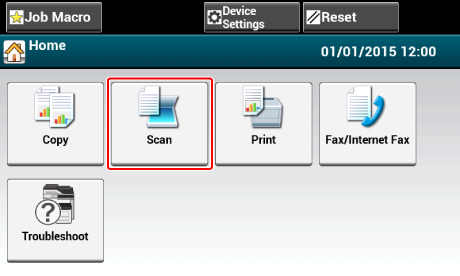

  1. Press [Scan] or the (SCAN) button.

  2. Set a document in the ADF or on the document glass.

  3. Select a scan method.

    Sending Scanned Data as an E-mail Attachment

    Saving Scanned Data in USB Memory

    Saving Scanned Data in a Shared Folder

    Specify a destination by following the procedure for the selected scan method.

  4. Press [Image Settings] on the [Image Settings] tab.

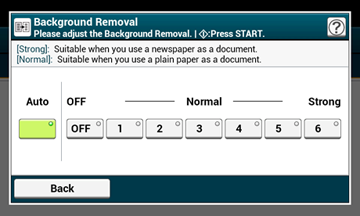

  5. Press [Background Removal] and press a value.

  6. Change other settings if necessary, and then press the (START) button.
