Windows PCL Printer Driver

You can switch between the [Setup], [Job Options], and [Extend] tabs for settings.

	Item	Description
1	Driver Settings	Saves your settings.
2	Preview	Displays a preview image of the printed result.
3	Media	Specifies the paper size, type, weight, paper feed method, or other settings.
4	Finishing Mode	Specifies the multi-page printing, booklet printing, poster printing, or other settings.
5	2-Sided Printing (Duplex)	Specifies this setting when you want to perform duplex printing.
6	Orientation	Specifies the printing direction.
7	Color Setting	Switches between color printing and monochrome printing.
8	Toner saving	Decreases the print density to save toner.
9	About	Displays the version of the printer driver.
10	Default	Resets the settings on the tab to their default settings.

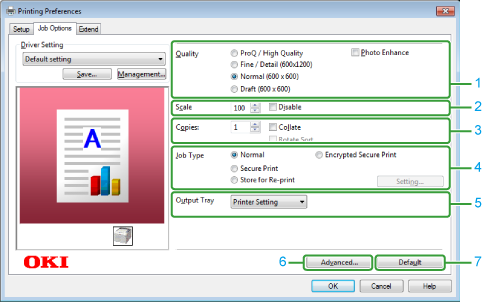

	Item	Description
1	Quality	Specifies the resolution for printing.
2	Scale	Specifies the enlargement/reduction rate for printing.
3	Copies	Specifies the number of copies to print.
4	Job Type	Specifies the print type.
5	Output Tray	Specifies output destination of printouts.
6	Advanced	Sets other printing settings.
7	Default	Resets the settings on the tab to their default settings.

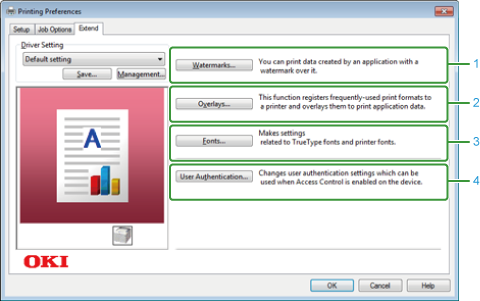

	Item	Description
1	Watermarks	Specifies when you want to use stamp print.
2	Overlays	Specifies when you want to use overlay print.
3	Fonts	Specifies TrueType fonts and printer fonts.
4	User Authentication	Specifies the user authentication.
