For K (black) Toner Cartridge Only

Memo

When replacing the C, M, Y toner cartridges, refer to "For C (cyan), M (magenta), Y (yellow) Toner Cartridge".

  1. Prepare a new [K] toner cartridge.

  2. Hold the handle (A) to open the scanner unit.

  3. Insert your finger into the recess (B) on the right side of the machine and pull the front cover open lever (1) to open the front cover (2) forward.

  4. Turn the blue lever (3) of the toner cartridge toward you until its top aligns on the mark.

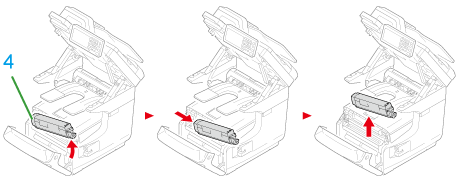

  5. Lift the toner cartridge (4) from the right side, and remove it from the machine.

    Burns may result.

    Never throw used toner cartridges into a fire. They may explode, and the toner inside may fly off and cause burns.

    Note

    When toner powder drops to the paper feeding area inside the machine, wipe it off with a wet cloth that has been well wrung.

  6. Unpack a new toner cartridge.

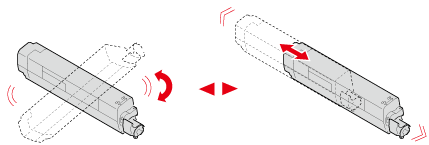

  7. Shake the cartridge several times vertically and horizontally.

  8. Remove the tape (5) from the toner cartridge.

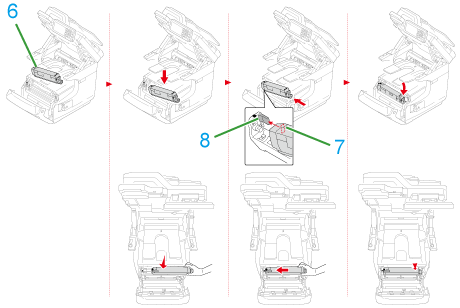

  9. Insert a new toner cartridge (6) by aligning its left side indentation (7) with the protrusion (8) on the image drum so the toner cartridge and image drum [K] color label align. Then insert the right side gently into place.

    Note

    Do not insert a toner cartridge without removing the tape.

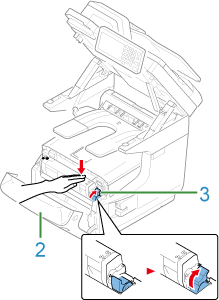

  10. Turn the blue lever (3) of the toner cartridge backward until its top aligns on the mark while pressing the toner cartridge.

  11. Close the front cover (2).

    Note

    The front cover cannot be closed if the output tray is not closed securely.

  12. Hold the handle (A) to close the scanner unit.

  13. Please recycle toner cartridges.

    Memo

    If you have to dispose of used toner cartridges, put them into polyethylene bags or other container, and be sure to follow the regulations or instructions of your local government.
