Making Enlarged or Reduced Copies (Zoom)

Note

You can use [Auto] only if copying on A3, A4 Landscape, A4 Portrait, A5 Landscape, A5 Portrait, A6 Portrait, B4, B5 Landscape, B5 Portrait, Tabloid, Letter Landscape, Letter Portrait, Legal13/13.5/14, Executive Portrait, Statement Landscape, Statement Portrait, Folio, or 8.5 SQ paper.

  1. Press [Copy] or the (COPY) button.

  2. Set a document in the ADF or on the document glass.

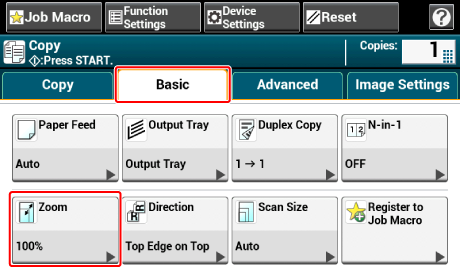

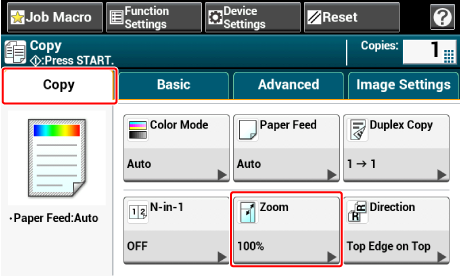

  3. Press [Zoom] on the [Copy] or [Basic] tab.

    Memo

    Alternatively, you can set this setting from [Function Settings].

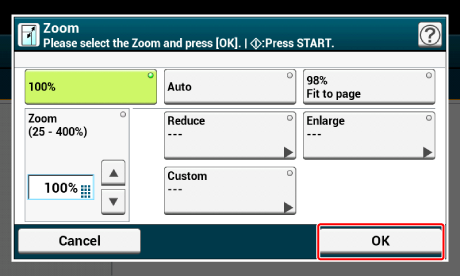

  4. Set the zoom rate.

    • When using [Auto]

    1. Select [Auto], and then press [OK].

    • When selecting a preset zoom rate

    1. Select a zoom value, and then press [OK].

      Available rate settings:

    • To set other zoom rate

    1. Press [Reduce] or [Enlarge].

    2. Specify a zoom rate.

    Memo

    If [Fit to page(98%)] is selected and the size of the document and the paper are the same, the document is reduced to fit the paper.

    • When setting the zoom rate by using the numeric keypad

    1. Enter the zoom rate from 25 to 400% by using the numeric keypad or pressing on the touch panel, and then press [OK].

    Memo

    • You can set the rate in units of 1%.

    • If you enter an incorrect value, press the (CLEAR) button, and then enter the correct value.

    • When setting different zoom rates for vertical and horizontal axes

    1. Press [Custom].

    2. Specify the zoom rates for vertical and horizontal axes.

      Enter the zoom rate from 25 to 400% by using the numeric keypad or pressing on the touch panel, and then press [OK].

    Memo

    • When setting different zoom rates for vertical and horizontal axes, you need to specify the feeding tray.

    • You can set the rate in units of 1%.

    • If you enter an incorrect value, press the (CLEAR) button, and then enter the correct value.

  5. Press the (START) button.

Memo

  • If [Paper Feed] is set to [Auto], [Zoom] is automatically set to [100%]. To select a different rate, set [Paper Tray], and then set [Zoom].

  • If [Paper Feed] is set to [Auto], the paper tray is automatically selected according to the selected zoom rate. To use a specific paper tray, reset [Paper Feed] again.

  • Even if [Paper Feed] is set to [Auto], you cannot select a paper tray that holds paper other than A3, A4 Landscape, A4 Portrait, A5 Landscape, A5 Portrait, A6 Portrait, B4, B5 Landscape, B5 Portrait, Tabloid, Letter Landscape, Letter Portrait, Legal13/13.5/14, Executive Portrait, Statement Landscape, Statement Portrait, Folio, or 8.5 SQ. In this case, specify from [Paper Feed].

  • If [Paper Feed] is set to [Auto], the [Paper Feed] setting automatically changes by setting [Zoom] to [Auto]. A message is displayed on the touch panel to inform you that the setting has been changed.
