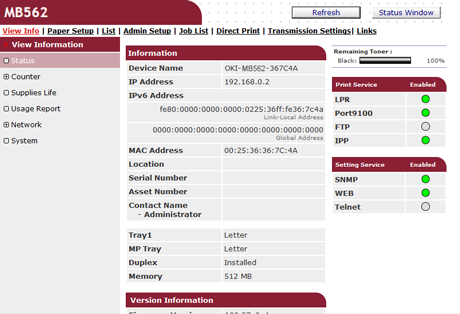

View Information
|
Item |
Description |
|---|---|
|
Status |
Displays the current status of the machine. All the warnings and errors that have occurred on the machine are displayed as "Alert information". You can also check the operating status of each network service, a list of machine information, and the IP address that is set to the machine. |
|
Counter |
Displays the number of printouts by printing or scanning. |
|
Supplies Life |
Displays the remaining amount and lifetime of consumables. |
|
Usage Report |
Displays the print statistics results. |
|
Network |
You can check general information, the status of TCP/IP, maintenance information, and other Network setting information. |
|
System |
Displays the machine information. |
Paper Setup
This function is displayed only if you log in as the administrator of the machine.
|
Item |
Description |
|---|---|
|
Tray Configuration |
You can set a paper size for each tray, custom paper, and other settings. When using the printer driver, the values that are set with the printer driver are given priority over these settings. |
|
Select Tray |
Select a tray that is used when a received document is printed or paper is automatically selected. |
|
Paper Input Options |
Sets tray switch and a priority order. |
|
Duplex Last Page |
Sets whether to perform duplex printing if the last page is a simplex page. |

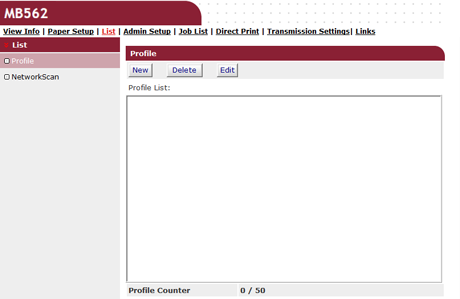

List
This function is displayed only if you log in as the administrator of the machine.
|
Item |
Description |
|---|---|
|
Profile |
You can set information that is required for performing Scan to Network PC, and register it as a profile. You can set a protocol, save destination URL, file name, density, document size, color format, monochrome format, and other settings to a profile. |
|
Network Scan |
Registers, deletes, and edits a destination for a network scan. |

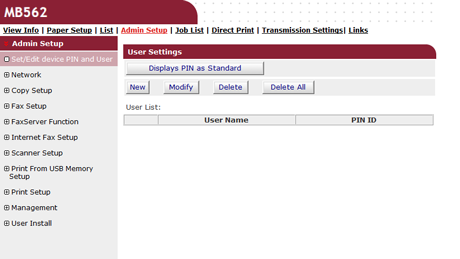

Admin Setup
This function is displayed only if you log in as the administrator of the machine.
-
Network
|
Item |
Description |
|
|---|---|---|
|
General Network Settings |
Sets the general network settings. |
|
|
Wireless Setting |
Sets the Wireless settings. |
|
|
TCP/IP |
Sets TCP/IP information. |
|
|
NBT |
Sets NetBIOS over TCP information. |
|
|
Mail Server |
Sets a mail server. |
|
|
|
Receive Settings |
Sets an e-mail receive settings. |
|
Alert Settings |
Sets the function that enables you to receive e-mail alerts about events that have occurred on the machine. |
|
|
SNMP |
Settings |
Sets SNMP. |
|
Trap |
Sets SNMP Trap. |
|
|
IPP |
Settings |
Sets the function that enables you to perform IPP print. |
|
Authentication |
Sets authentication. |
|
|
Google Cloud Print |
Sets Google Cloud Print information. |
|
|
Windows Rally |
Sets Windows Rally information. |
|
|
IEEE802.1X |
Sets EEE802.1X/EAP information. |
|
|
Secure Protocol Server |
Sets secure protocol server information. |
|
|
LDAP |
Sets LDAP information. |
|
|
Proxy |
Sets Proxy information. |
|
|
Security |
Protocol ON/OFF |
Stops a network protocol and network service that are not used. |
|
IP Filtering |
Restricts access by using IP addresses. Access from outside your company is also supported. However, this function requires sufficient knowledge about IP addresses. Some settings may result in serious problems that prevent you from accessing the machine via a network. |
|
|
MAC Address Filtering |
Restricts access by using MAC addresses. Access from outside your company is also supported. However, this function requires sufficient knowledge about MAC addresses. Some settings may result in serious problems that prevent you from accessing the machine via a network. |
|
|
SSL/TLS |
Encrypts communications between a computer (client) and the machine. |
|
|
IPSec |
Sets the encryption for communications between a computer (client) and the machine, and settings to prevent tampering. |
|
|
WebPage Authentication Method |
Sets WebPage Authentication Method. |
|
|
Maintenance |
Reset/Restore |
Restarts and resets a network. Even if you access the Web page from the Web browser after restarting, the Web page is not displayed until the restart is complete. Resetting restores the IP address to its default status, resulting in information you manually set being lost. In such a case, the Web page cannot be displayed. |
|
Network Scale |
Improves operation efficiency on a network. This setting is very effective when a hub that has the spanning tree function is used, or a computer and the machine are connected one-on-one with a cross cable. |
|
-
Copy Setup
You can set the image quality, density, scan size, margins, edge erase, duplex, and other settings.
-
Fax Setup
|
Item |
Description |
|---|---|
|
Default Settings |
Sets the image quality, density, and other default settings for sending faxes. |
|
Security Function |
Sets security for sending faxes. |
|
Other Settings |
Sets other settings for sending faxes. |
-
FaxServer Function
|
Item |
Description |
|---|---|
|
Environmental Settings |
Sets the environmental settings. |
|
Default Settings |
Sets the default settings. |
|
Security Function |
Sets the security settings. |
-
Internet Fax Setup
Sets Internet Fax.
-
Scanner Setup
|
Item |
Description |
|---|---|
|
Default Settings |
Sets the image quality, density, and other default settings for scanning. |
|
E-mail Setup |
Sets e-mail settings that are required for performing Scan to E-mail. |
|
USB Memory Setup |
Sets USB Memory settings for performing Scan to USB Memory. |
|
TWAIN Setup |
Sets TWAIN. |
|
WSD Scan Setup |
Sets WSD Scan. |
|
PC Scan Mode |
Sets PC Scan mode. |
-
Print From USB Memory Setup
Set Print From USB Memory.
|
Item |
Item Description |
|---|---|
|
Default Settings |
Sets default settings when printing from USB Memory. |
-
Print Setup
|
Item |
Description |
|
|---|---|---|
|
Print Menu |
Print Setup |
Sets the number of copies, resolution, and other settings. When using the printer driver, the values that are set with the printer driver are given priority over these settings. |
|
Printer Adjust |
Sets manual timeout, jam recovery, and other print adjustment settings. |
|
|
Print Position Adjust |
Adjusts front X, front Y, back X and back Y positions. |
|
|
Drum Cleaning |
Sets cleaning of an image drum. |
|
|
Hex Dump |
Displays all the received print data in hex. To exit this mode, restart the machine. |
|
|
System Configuration Menu |
Sets operation modes, alarm release, and other machine operation settings for each situation. |
|
|
Emulation |
PCL Setup |
Sets PCL. |
|
PS Setup |
Sets PS. |
|
|
XPS Setup |
Sets XPS. |
|
|
IBM PPR Setup |
Sets IBM PPR Setup. |
|
|
EPSON FX Setup |
Sets EPSON FX Setup. |
|
|
Encrypted Secure Print Setup |
Sets whether device will handle as an encrypted authorized printing job or ID-authorized print job. |
|
-
Management
You can set device settings.
|
Item |
Description |
|
|---|---|---|
|
Local Interface |
USB Menu |
Sets USB. |
|
Access Control Setup |
Sets user authentication and access control. |
|
|
System Setup |
Sets display units and other settings. |
|
|
Power Save |
Sets power save settings. |
|
|
Memory Setup |
Sets the reception buffer size and resource save area. |
|
|
Admin Password |
Sets an administrator password. |
|
|
Reset Settings |
Initializes all the data that is set in "Management", including speed dial, copy and fax function settings. |
|
-
User Install
|
Item |
Description |
|---|---|
|
Power Setup |
Sets Auto power off and Power supply Return. |
|
Fax Setup |
Sets a fax line, sender, and other settings. |
|
Time Setup |
Sets the time to the machine. |
|
Other Settings |
Sets High humid mode. |
Memo
If [Auto] is selected for Time Setup, the time cannot be set from the operator panel.

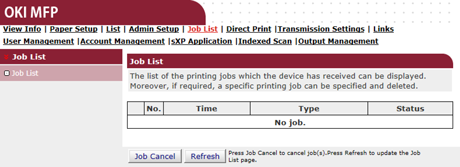

Job List
|
Item |
Description |
|---|---|
|
Job List |
Displays a list of print jobs that are sent to the machine. You can delete unnecessary jobs. |

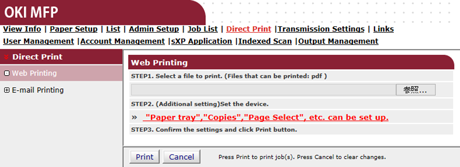

Direct Print
|
Item |
Description |
|
|---|---|---|
|
Web Printing |
Specifies and prints a PDF file. |
|
|
E-mail Printing |
E-mail Printing |
Prints a PDF, JPEG and TIFF file if it is attached on an e-mail that the machine receives. |
|
Receive Settings |
Sets an e-mail receive settings. |
|

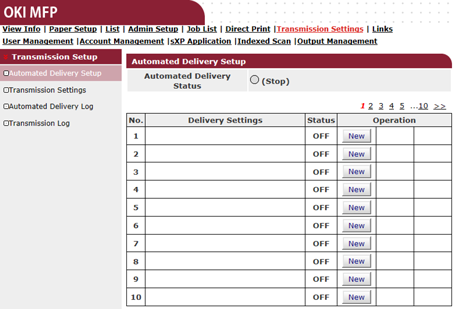

Transmission Settings
This function is displayed only if you log in as the administrator of the machine.
|
Item |
Description |
|---|---|
|
Automated Delivery Setup |
Sets the function that enables you to automatically convert a received fax into an e-mail and send it, and the function that enables you to automatically deliver a received e-mail. |
|
Transmission Settings |
Sets the function that enables you to save received and sent faxes and e-mail data to a server and other storages. |
|
Automated Delivery Log |
Displays the automated delivery logs. |
|
Transmission Log |
Displays the transmission logs. |

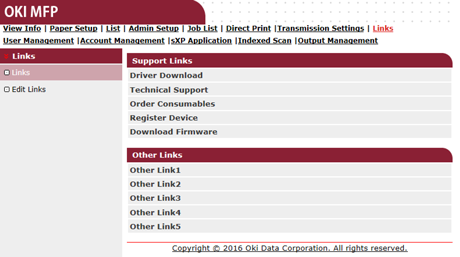

Links
|
Item |
Description |
|---|---|
|
Links |
Displays the links that are set by the manufacturer, and the links that are set by your administrator. |
|
Edit Links |
Your administrator can set any URLs. Five support links and five other links can be registered. Include "http://" in an entered URL. |
