Enabling Wireless LAN Connection (ES5162LP MFP only)

  1. Check that the machine is turned on.

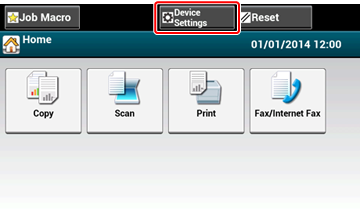

  2. Press [Device Settings] at the top of the home screen.

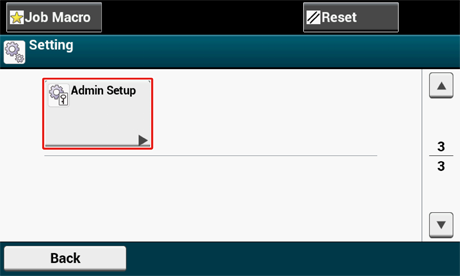

  3. Press [] once and press [Admin Setup].

  4. Enter the administrator password, and then press [OK].

    Memo

    The factory default administrator name and password are "admin" and "aaaaaa" respectively. If the administrator password is changed in Easy Setup, enter the updated password.

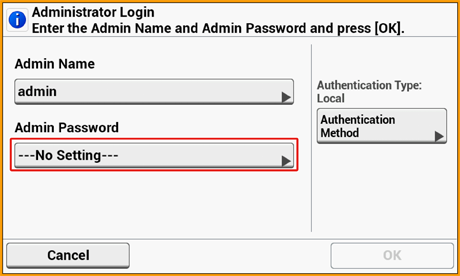

  5. On the administrator login screen, press [OK].

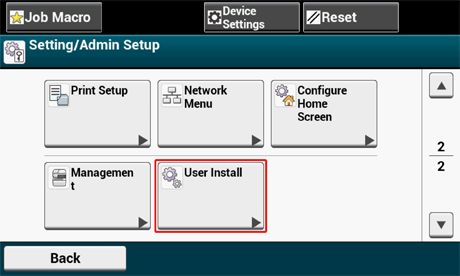

  6. Press [] once and press [User Install].

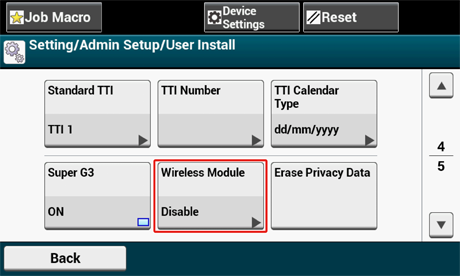

  7. Press [] once and press [Wireless Module].

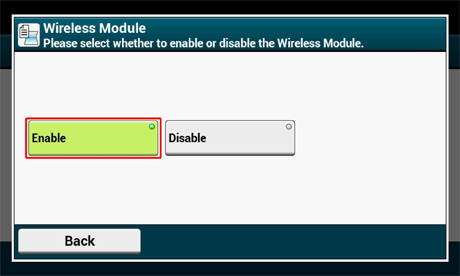

  8. Press [ENABLE].

  9. Press [Back] until the home screen is displayed.

  10. Press the power button to turn the machine off.

  11. Press the power button to turn the machine on.

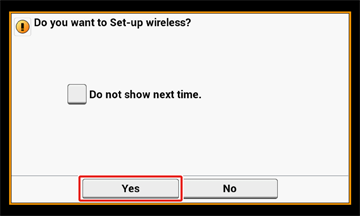

  12. Press "Yes" if "Do you want to Set-up wireless?" is displayed on the touch panel.

    And then go to "Connecting to an Access Point (Infrastructure)".
