Cleaning the Paper Feed Rollers (MP Tray)

Clean the paper feed rollers in the MP tray.

  1. Open the MP tray.

  2. Close the MP tray gently to a position where the left and right tabs (1) fit the arm grooves (2).

  3. Separate the tabs on the roller guide (3) from the left and right arms by opening the arms outward.

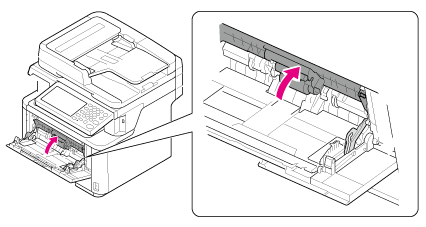

  4. Raise the roller guide until it comes in contact with the machine.

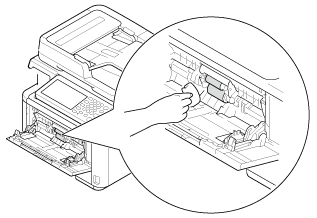

  5. Wipe the rollers.

  6. Close the MP tray gently to the position described in step 2.

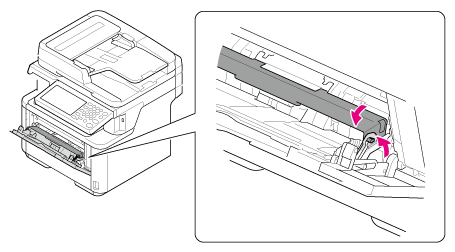

  7. Lower the roller guide, and then lock the left and right tabs by closing the left and right arms inwards.

  8. Close the MP tray.
