Setting Fax Detection Mode

Set the machine so that it can determine whether the sender is sending a fax while the recipient is holding the handset of the external telephone after picking it up to answer the call when the telephone rings in Tel/Fax Ready mode.

  1. Press [Device Settings] on the touch panel.

  2. Press or several times and press [Admin Setup].

  3. Enter the administrator name and password and press [OK].

    The factory default administrator name and password are "admin" and "aaaaaa" respectively.

  4. Press [Fax Setup].

  5. Press [Fax Setting].

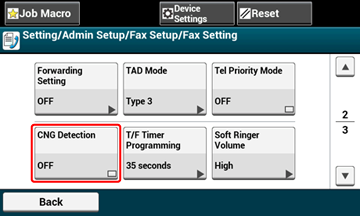

  6. Press or several times and press [CNG Detection] and set it to [ON].

    Memo

    Pressing [CNG Detection] switches between [ON] and [OFF].

    • [ON]: The machine detects fax beep signals, and then automatically starts receiving a fax.

    • [OFF]: If the sender is sending a fax, the machine receives a fax with manual reception.

  7. Press [Back] until the home screen is displayed.
