Changing the Document Orientation (Direction)

You can select [Portrait] or [Landscape] for the document orientation. Specify the appropriate orientation to get the copy result you want.

  1. Press [Copy] or the (COPY) button.

  2. Set a document in the ADF or on the document glass.

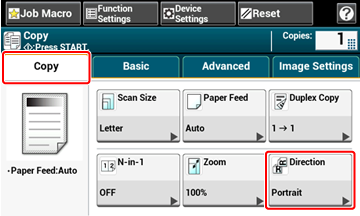

  3. Press [Direction] on the [Copy] or [Basic] tab.

    Memo

    Alternatively, you can set this setting from [Function Settings].

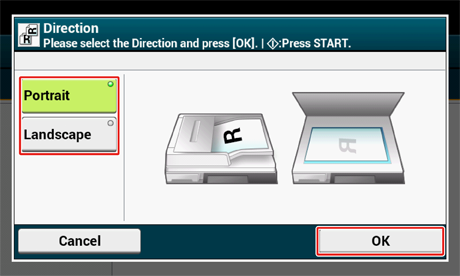

  4. Select the document orientation, and then press [OK].

    Memo

    If you press [Cancel], the screen returns to the previous screen without saving the changes.

  5. Press the (START) button.
